Middle East MR-ACT Remote Volcanic Gas Monitoring System Manufacturer, Ranking

MR-ACT Â remote volcanic gas monitoring system enables long-range gas detection up to 5 km radius, performing qualitative identification and dynamic quantitative inversion of toxic, hazardous, and chemical gases. It delivers:

Real-time detection of gas species
Dynamic concentration mapping with spatial-temporal distribution
Gas plume diffusion tracking (direction & coverage)
Rapid large-area scanning for source localization

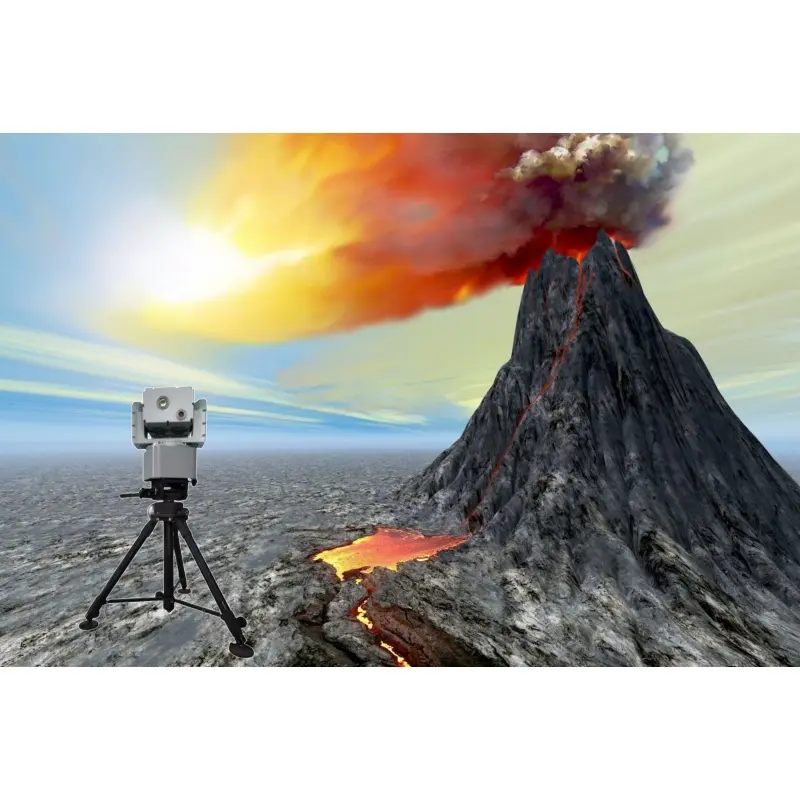

This system can be used for volcanic eruption gas monitoring: Monitor toxic and harmful gases produced during volcanic eruptions, such as sulfur dioxide(SO2), hydrogen sulfide(H2S), hydrogen chloride(HCl), methane(CH4), etc.

The main advantages of MR-ACT system are:

Ultra-Fast Hyperspectral Imaging
Military-Grade Robustness
Vibration-resistant design for harsh environments
AI-Powered Visual Interface
Real-time gas plume visualization
One-click threat prioritization
>5 km Standoff Detection
Multi-Scanning Modes
Point monitoring | 360Â° panoramic scan | Custom geo-fencing
HgCdTe (MCT) Detector
Thermal sensitivity:â‰¤25 mKÂ (NETD)

Send Inquiry

Product Description

Main Features & Functions

◈ Passive, non-contact long-distance measurement, with a measurement diameter of up to 10 kilometers.

◈ Automatic and real-time analysis and identification of hundreds of gas types.

◈ Using mercury cadmium telluride detector with noise equivalent temperature difference ≤25mK.

◈ High spectral collection rate and high spectral resolution for precise monitoring.

◈ Multiple working modes: fixed-point, 360° all-round, and customized area detection.

◈ Gimbal with servo motor design for high turning accuracy and controllability.

◈ Electronic slip ring design allowing 360° infinite rotation scanning.

◈ Strong vibration resistance for real-time monitoring while vehicle is in motion.

◈ Extreme temperature stability: reliable operation from -40℃ to 65℃.

◈ IP66 protection grade: works reliably during heavy rain without extra protection.

◈ Small size, light weight, and high maneuverability for quick deployment.

◈ ZnSe material detection window for optimal infrared light transmission.

Technical Specifications

Measurable Gas	Petrochemical: Methanol, Ethanol, Acetic acid, Aniline, Styrene, etc. Fire Protection: AC, Acetone, CS2, Nitric acid, Hydrazine, Benzene, etc. Other Chemicals: Hydrazine, ASH3, H2S, NF3, HCL, SO2, etc. Specialty: Poisonous gases and over 400 other gas types.
Detector Type	Cooled mercury cadmium telluride detector
Spectral Range	8~12μm
Spectral Resolution	Better than 1cm-1
Spectral Acquisition Rate	20 spectra/second (Δσ≤ 1 cm-1, double-sided interference pattern)
Camera Resolution	640 x 512 pixels (night vision infrared)
Voltage / Power	(110~230) VAC / < 120 W
Installation Method	Fixed, portable, vehicle-mounted
Dimensions	380×270×500mm (L×W×H)
Weight	28Kg

Scenario Application

Frequently Asked Questions

1. What is the maximum detection range of this equipment? The equipment features passive, non-contact long-distance measurement with a proven detection diameter of up to 10 kilometers.

2. How many types of gases can the system identify? The system can automatically analyze and identify more than 400 types of gases, including petrochemicals, toxic chemicals, and specialty gases.

3. Can the device operate in harsh weather conditions? Yes, it has an IP66 protection grade and can operate reliably in heavy rain and temperatures ranging from -40℃ to 65℃.

4. What installation options are available for deployment? The equipment is highly versatile and supports fixed installation, portable use, or vehicle-mounted monitoring even while driving.

5. Does it support 360-degree area monitoring? Yes, the device utilizes an electronic slip ring design and a servo motor gimbal to allow for 360° infinite rotation and all-round area detection.

6. What is the spectral resolution and acquisition speed? The spectral resolution is better than 1cm-1, with a high acquisition rate of 20 spectra per second.
