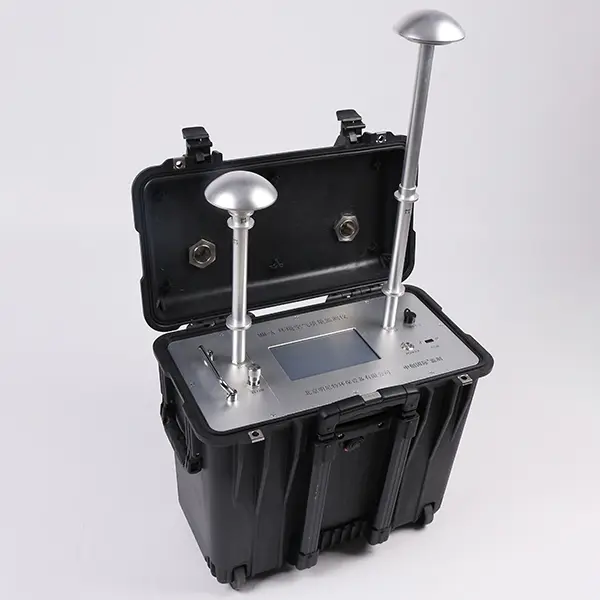

Petroleum And Petrochemical Industry MR-A Ambient Air Quality Monitor (Portable) Brand, Ranking

MR-A ambient air quality monitor (portable) is an instrument for monitoring air quality in the environment. It is an ambient air quality monitor that complies with the Class C method of the "Air and Exhaust Gas Monitoring and Analysis Methods" promulgated by the State Environmental Protection Administration. It can monitor simultaneously. At least four measured gas and particulate matter concentrations required by the environmental protection department. Monitored ambient gases include: SO2, NO2, CO, O3, and particulate matter concentrations include: PM2.5, PM10. It can be expanded to monitor more than thirty kinds of gases such as VOC, H2S, NOX, CH4, HCl, HF, Cl2, NH3, CO2, etc.; dust particles TSP; meteorological parameters: temperature, humidity, atmospheric pressure, wind speed, wind direction, illumination, ultraviolet radiation, Solar radiation, noise, negative oxygen ions, etc. It adopts its own core algorithm to achieve high-precision detection with a resolution of 1ppb.

Product Description

1

Key Features

  • Using ppb level sensors, the instrument has high detection accuracy and stable performance;
  • IP65 outdoor application design, waterproof, shockproof, anti-corrosion, and salt spray resistant;
  • Adopt military electronics design circuit, with temperature, humidity and zero point compensation;
  • Built-in imported constant flow sampling pump, more stable monitoring and faster response;
  • Modular design allows key modules to be easily disassembled for calibration and maintenance;
  • Embedded LCD touch screen design with graphics, curves, and charts display methods;
  • Automatically calculate hourly average, daily average, weekly average, and monthly average;
  • Automatic conversion of monitoring data units: mg/m³, ppb, ppm.
2

Application Areas

  • Ambient air quality evaluation and monitoring
  • Urban ambient air quality monitoring
  • Traffic road monitoring and scenic area environmental monitoring
  • Supplement monitoring of state-controlled sites
  • Monitoring of key industrial areas and park factory boundaries

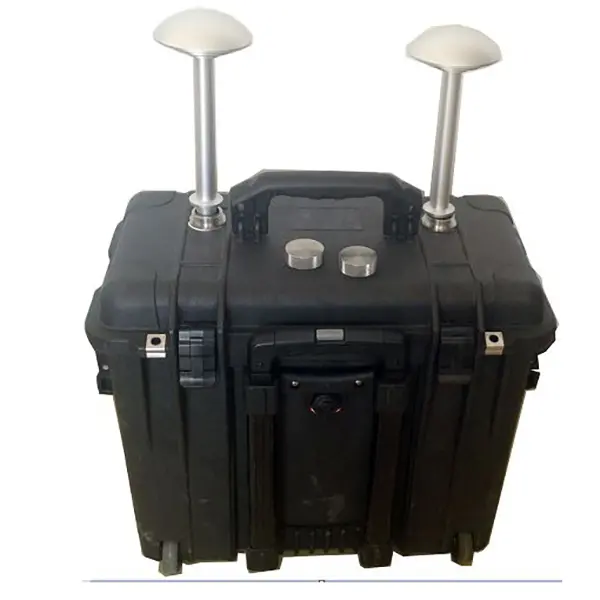

Air Monitoring Device 1

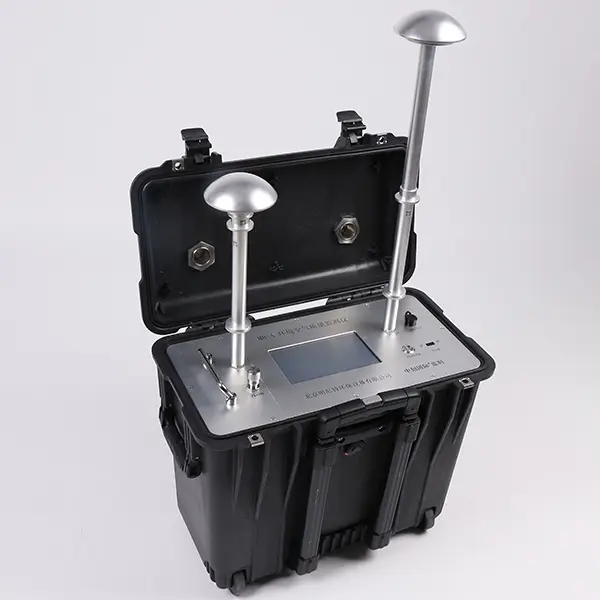

Air Monitoring Device 2

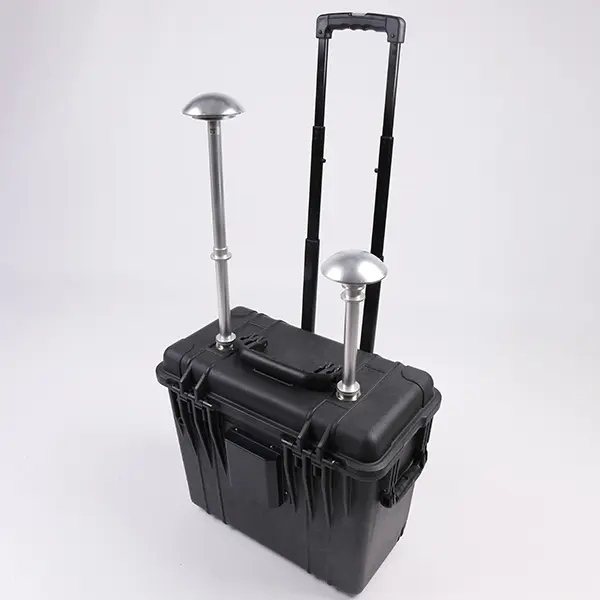

Air Monitoring Device 3
3

Detection Parameters

Detection Parameters Measuring Range Resolution Accuracy Measurement Principle
Sulfur dioxide SO₂ (0~2000) × 10⁻⁹ 1 × 10⁻⁹ ≤ ± 2%F.S Constant potential electrolysis
Nitrogen dioxide NO₂ (0~2000) × 10⁻⁹ 1 × 10⁻⁹ ≤ ± 2%F.S Constant potential electrolysis
Carbon monoxide CO (0~50.00) × 10⁻⁶ 0.01 × 10⁻⁶ ≤ ± 2%F.S Constant potential electrolysis
Ozone O₃ (0~2000) × 10⁻⁹ 1 × 10⁻⁹ ≤ ± 2%F.S Constant potential electrolysis
PM2.5 (0.001~10) mg/m³ 0.001 ± 5%F.S Laser scattering
PM10 (0.001~10) mg/m³ 0.001 ± 5%F.S Laser scattering
4

Technical Indicators

Indicator Specifications
Sensor Life Electrochemical: 2 years; Infrared/PID: 5 years
Zero / Linear Drift ≤ ± 2%F.S
Response Time < 60S
Operating Temperature -40°C ~ +55°C
Working Humidity 15% ~ 95%RH (No condensation)
Sampling Method Constant current sampling pump
Display Embedded 7-inch LCD touch screen
Data Interface USB, RS485/RS232, GPRS (Optional)
Protection Level IP65
Working Power Supply 110VAC ~ 240VAC; Built-in battery (8-10 hours)
Total Weight 18KG
Dimensions 500 x 310 x 460 mm (L x W x H)
?

Frequently Asked Questions

Q: What is the protection rating of this air quality monitor? A: The device is designed with an IP65 rating, making it waterproof, shockproof, and suitable for harsh outdoor environments including salt spray areas.
Q: How does the device handle temperature fluctuations? A: It uses a military-grade electronics design with built-in temperature, humidity, and zero-point compensation to ensure accurate readings from -40°C to +55°C.
Q: Can the data be exported or viewed remotely? A: Yes, the device features USB, RS485, and RS232 interfaces. GPRS is also available as an optional module for remote data transmission.
Q: Does it require a constant power supply? A: While it supports 110V-240V AC power, it also includes a built-in lithium battery that provides 8 to 10 hours of continuous operation (extendable to 20 hours).
Q: How easy is it to maintain the sensors? A: The product adopts a modular design. Key modules can be easily disassembled for individual calibration or replacement, significantly reducing maintenance downtime.
Q: What types of gases can this instrument detect? A: It is capable of monitoring SO₂, NO₂, CO, O₃, as well as particulate matter like PM2.5 and PM10 using advanced electrolysis and laser scattering principles.
