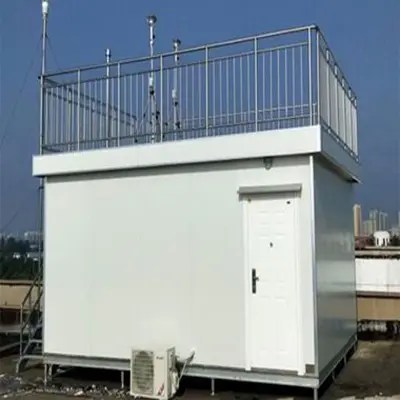

Petroleum And Petrochemical Industry MR-A(S) Ambient Air Quality Monitor (Automatic Station) Brand, Ranking

MR-A(S) ambient air quality monitor (automatic station) is a comprehensive station for monitoring air quality in the environment. It contains high-precision dynamic gas distribution instrument, air quality monitor, zero air generator and other instruments, which can realize The calibration function is an ambient air quality monitor that complies with the Class C method of the "Air and Exhaust Gas Monitoring and Analysis Methods" promulgated by the State Environmental Protection Administration. It can simultaneously monitor at least four measured gas and particle concentrations required by the environmental protection department. Monitoring ambient gases include : SO2, NO2, CO, O3, particulate matter concentration includes: PM2.5, PM10. It can be expanded to monitor more than thirty kinds of gases such as VOC, H2S, NOX, CH4, HCl, HF, Cl2, NH3, CO2, etc.; dust particles TSP; meteorological parameters: temperature, humidity, atmospheric pressure, wind speed, wind direction, illumination, ultraviolet radiation, Solar radiation, noise, negative oxygen ions, etc. Adopt self-created core algorithm to achieve resolution of 1ppb.

Product Description

Main Features

  • Using ppb level sensors for high detection accuracy and stable performance.
  • Compatible with various software platforms according to user needs.
  • Outdoor-ready design: waterproof, shockproof, anti-corrosion, and salt spray resistant.
  • Constant temperature and dehumidification ensures reliability in extreme environments.
  • Military-grade electronics with temperature, humidity, and zero-point compensation.
  • Built-in imported constant flow sampling pump for faster response.
  • Flexible installation: floor-standing, hoop, or wall-mounted.
  • Small, integrated size ideal for grid distribution monitoring.
  • Modular design for easy disassembly, maintenance, and calibration.
  • Embedded LCD touch screen with graphics, curves, and charts display.
  • Automatic calculation of hourly, daily, weekly, and monthly averages.
  • Automatic unit conversion between mg/m3, ppb, and ppm.
  • Supports network cable and GPRS connection with simple configuration.
  • Remote data monitoring via mobile APP.
  • Data alarm system with APP, SMS, and WeChat push notifications.
  • Remote shutdown function for efficient device management.
  • Permission classification for secure account management.
📍

Application Areas

  • Industrial park factory boundary monitoring
  • Urban ambient air quality monitoring
  • Agricultural environment monitoring
  • Scenic area environmental monitoring
  • Supplement monitoring of state-controlled sites
  • Meteorological Bureau monitoring

Standard Configuration

  • Monitoring station host
  • Air conditioning system
  • UPS power supply
  • Wireless transmission DTU
  • Monitoring host computer software
  • USB flash drive & Power cord
  • Lightning protection device (optional)
  • Filter & Installation accessories
  • Operating Instructions & Certificate of conformity
  • Factory-level calibration certificate & Packing list
📊

Detection Parameters

Detection Parameters Measuring Range Resolution Accuracy Measurement Principle
Sulfur dioxide SO2 (0~2000)×10⁻⁹ 1×10⁻⁹ ≤±2%F.S Constant potential electrolysis
Nitrogen dioxide NO2 (0~2000)×10⁻⁹ 1×10⁻⁹ ≤±2%F.S Constant potential electrolysis
Carbon monoxide CO (0~50.00)×10⁻⁶ 0.01×10⁻⁶ ≤±2%F.S Constant potential electrolysis
Ozone O3 (0~2000)×10⁻⁹ 1×10⁻⁹ ≤±2%F.S Constant potential electrolysis
PM2.5 (0.001~10)mg/m3 0.001 ±5%F.S Laser scattering
PM10 (0.001~10)mg/m3 0.001 ±5%F.S Laser scattering
Remarks: Parameters can be expanded to include more than thirty kinds of gases such as H2S, CH4, HF, CL2, NH3, CO2, HCL, VOC, etc. Additionally, five meteorological parameters (wind speed, direction, temperature, humidity, atmospheric pressure) and other environmental factors like rainfall, noise, and negative oxygen ions can be added.
🖼

Scenario Application

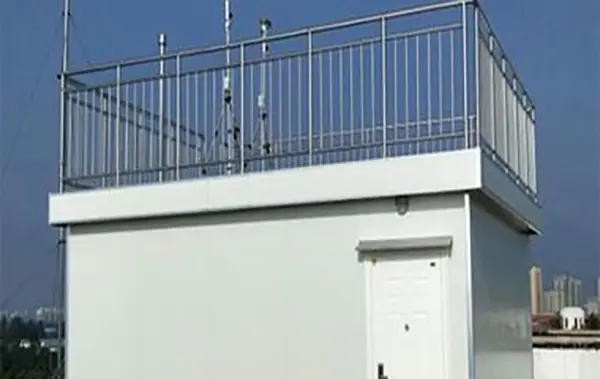

Air Quality Monitoring Scenario 1

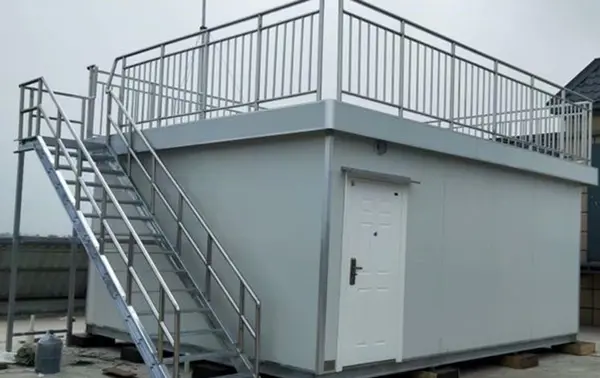

Air Quality Monitoring Scenario 2
Frequently Asked Questions
What gases can this monitoring station detect?
The standard configuration detects SO2, NO2, CO, O3, PM2.5, and PM10. It is expandable to over 30 types of gases including H2S, CH4, VOCs, and NH3 based on user requirements.
Is the equipment suitable for harsh outdoor environments?
Yes, it is specifically designed for outdoor use with waterproof, shockproof, and anti-corrosion features. It also includes a constant temperature and dehumidification system for extreme weather reliability.
How can I access the monitoring data remotely?
The system supports GPRS and network cable connections. Users can monitor real-time data via a dedicated mobile APP or through various software platforms.
What installation methods are supported?
The instrument is highly versatile and supports floor-standing, hoop (pole-mounted), and wall-mounted installation methods to suit different site conditions.
Does the system provide automatic alerts for high pollution levels?
Yes, it supports data alarms. When thresholds are exceeded, the system pushes notifications via the mobile APP, SMS, and WeChat.
Is maintenance complicated for this device?
No, the product features a modular design. Key modules can be easily disassembled for maintenance or sent back for calibration without needing to transport the entire unit.
