Military MR-ACT Gas Telemetry Imaging Early Warning System Manufacturer, Brand
1 / 1

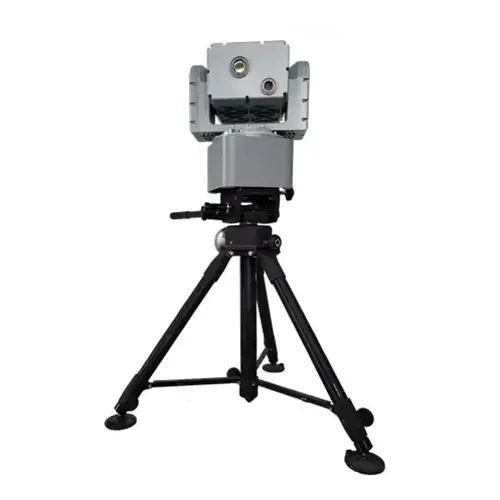

Military MR-ACT Gas Telemetry Imaging Early Warning System Manufacturer, Brand

Military MR-ACT Gas Telemetry Imaging Early Warning System Manufacturer, Brand

MR-ACT gas remote sensing imaging early warning system can measure more than 400 kinds of gases with a monitoring diameter of more than 10 kilometers. It is a scanning gas infrared remote sensing telemetry imaging system based on passive Fourier transform infrared spectroscopy technology to achieve target gas cloud Long-distance automatic detection and chemical imaging of the group, with early warning function. The system can be used in chemical park gas leakage monitoring, hazardous chemical emergency monitoring, major event security, fire protection, forest and grassland fires and other fields.

Send Inquiry

Product Description

✓
Key Features & Capabilities
  • ● Passive, non-contact long-distance measurement, with a measurement diameter of up to 10 kilometers.
  • ● Automatic and real-time analysis and identification of various gases, up to hundreds of gas types.
  • ● Using mercury cadmium telluride detector, the noise equivalent temperature difference is ≤25mK.
  • ● High spectral collection rate and high spectral resolution.
  • ● Multiple working modes: fixed-point, 360° all-round, and customized area detection.
  • ● Gimbal with servo motor design for high precision turning and strong controllability.
  • ● Electronic slip ring design allowing for 360° infinite rotation scanning.
  • ● Strong vibration resistance for vehicle monitoring while driving.
  • ● Wide operating temperature range from -40℃ to 65℃ with high reliability.
  • ● Protection grade IP66, rainproof and reliable in heavy rain conditions.
  • ● Small size, light weight, and quick to deploy for high maneuverability.
  • ● Detection window made of ZnSe material for infrared light transmission.
⚙
Technical Specifications
Measurable Gas Petrochemical: methanol, ethanol, acetic acid, aniline, styrene, etc.
Fire protection: AC, acetone, CS2, nitric acid, hydrazine, benzene, etc.
Other chemicals: hydrazine, ASH3, H2S, NF3, HCL, SO2, etc.
Other poisonous gases: special poisonous gases. (More than 400 kinds total)
Detector Type Cooled mercury cadmium telluride detector
Spectral Range 8~12μm
Spectral Resolution Better than 1cm-1
Spectral Acquisition Rate 20 spectra/second (Δσ≤ 1 cm-1, double-sided interference pattern)
Camera Resolution 640 x 512 pixels (night vision infrared)
Voltage/Power Consumption (110~230) VAC / < 120 W
Installation Method Fixed, portable, vehicle-mounted
Dimensions 380×270×500mm (L×W×H)
Weight 28Kg
▶
Product Demonstration
★
Scenario Application

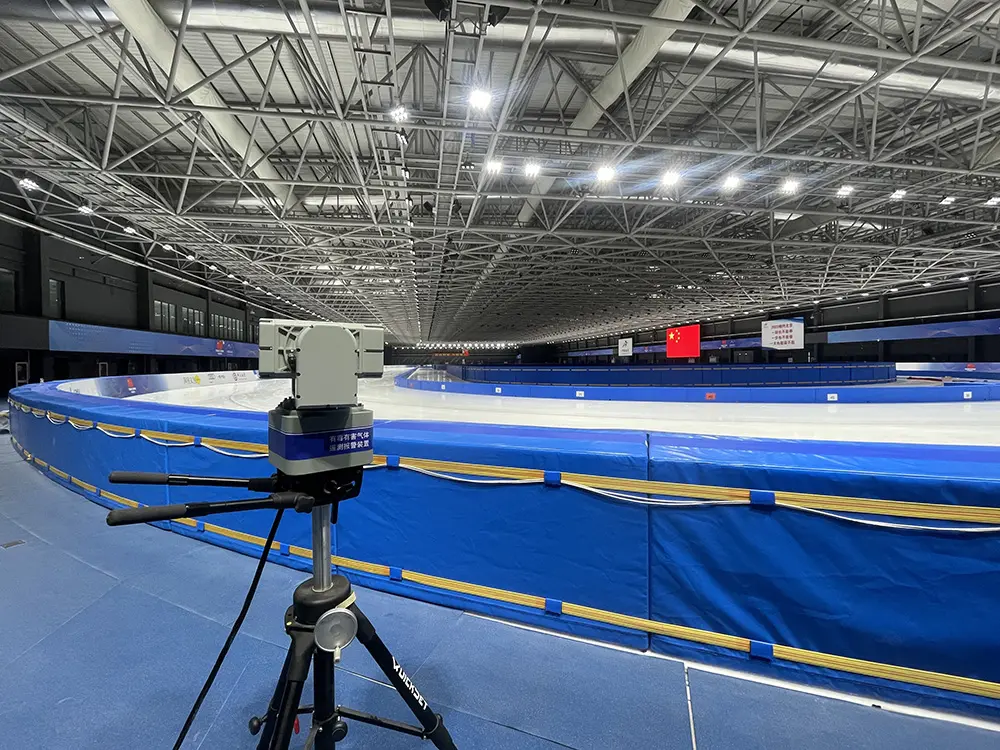

Venue alert

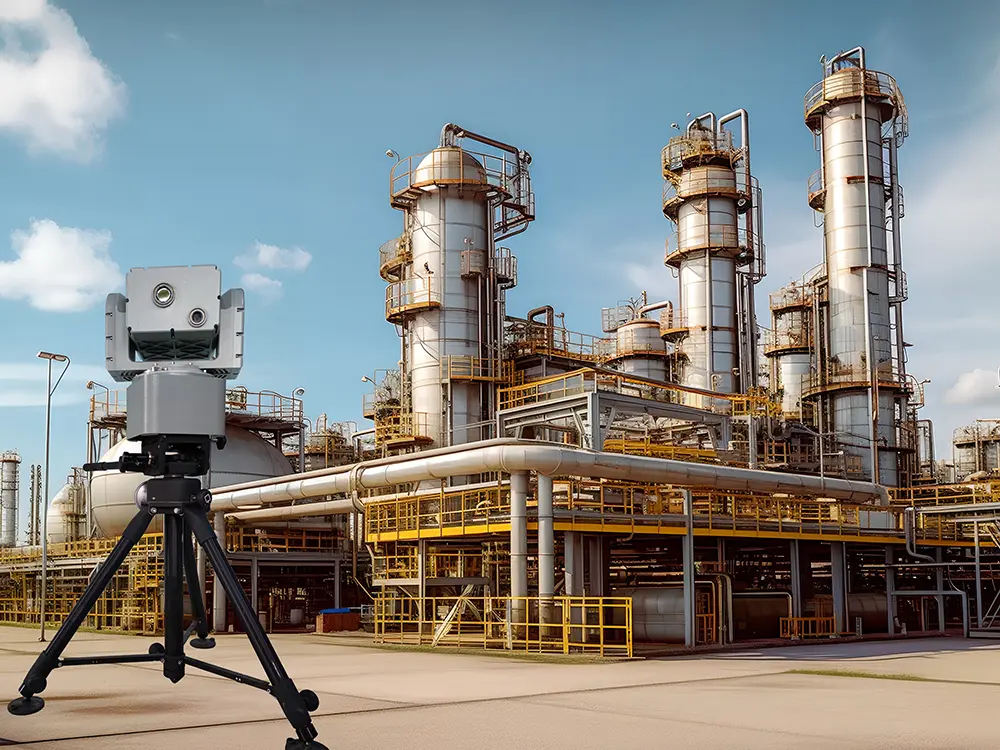

Petroleum telemetry
?
Frequently Asked Questions
What is the maximum detection distance of this equipment?
The device features passive, non-contact long-distance measurement capabilities with an actual measurement diameter of up to 10 kilometers.
How many different types of gases can the system identify?
The system can automatically analyze and identify over 400 kinds of gases in real-time, including petrochemical chemicals, fire hazards, and poisonous gases.
Can the equipment be used in extreme weather conditions?
Yes, it has an IP66 protection rating, making it rainproof and capable of operating reliably in heavy rain. It also operates stably in temperatures ranging from -40℃ to 65℃.
Is the device suitable for mobile or vehicle-mounted monitoring?
Absolutely. The equipment is designed with strong vibration resistance, allowing for effective monitoring while a vehicle is in motion.
Does the scanner support full 360-degree detection?
Yes, it utilizes an electronic slip ring design that supports 360° infinite rotation for all-round area scanning and customized detection.
What type of detector technology does this system use?
The system utilizes a cooled mercury cadmium telluride (MCT) detector, ensuring high sensitivity and high spectral resolution.
